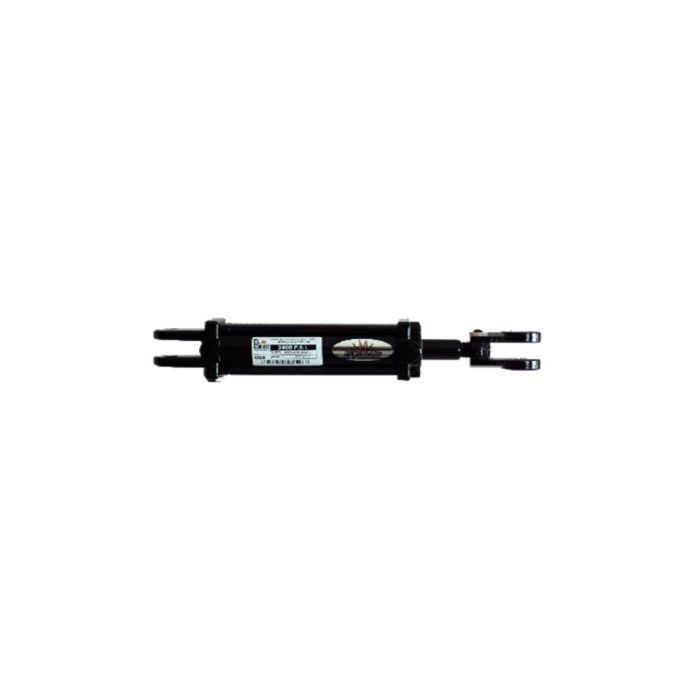

3000 PSI Tie-Rod Line 3000 PSI Rated Tie-Rod Cylinder - Continuous Working Pressure 3000 PSI Tie-Rod Cylinders Bore sizes 2" to 5" Stroke sizes 4" to 48" Honed Tubing Heavy duty, high strength tie rods RoyalPlate Plus® plating on rodInduction hardened piston rods (except 2” bore) Flexible configurations Exceptional paint performance-Aircraft quality two-part paint 3 Year Cylinder Warranty (see catalog for full details) 7 Year Warranty on rods (see catalog for full details) Standard Dimensions of 3.5 Inch Bore Cylinders Note: 1 3/8" rod diameter. Outside Sq. Dim. Butt - 4.313, Gland 4.313 A - 3/16" cylinder tube wall thickness B, C - SAE 3/4-16 extend & retract points D - 1.015" clevis pin hole size E, F - 1 7/8" base clevis throat depth with 2 7/16" from pin center to port center G - 1 13/16" rod clevis throat depth J - 1.06" min. distance between ears at pin center line K - 1 1/4" base clevis ear radius L - 1 1/4" rod clevis ear radius M - 1 5/16” – 12 UNF-3 piston rod clevis thread size N - 1" piston width O - 1 15/16" gland width
