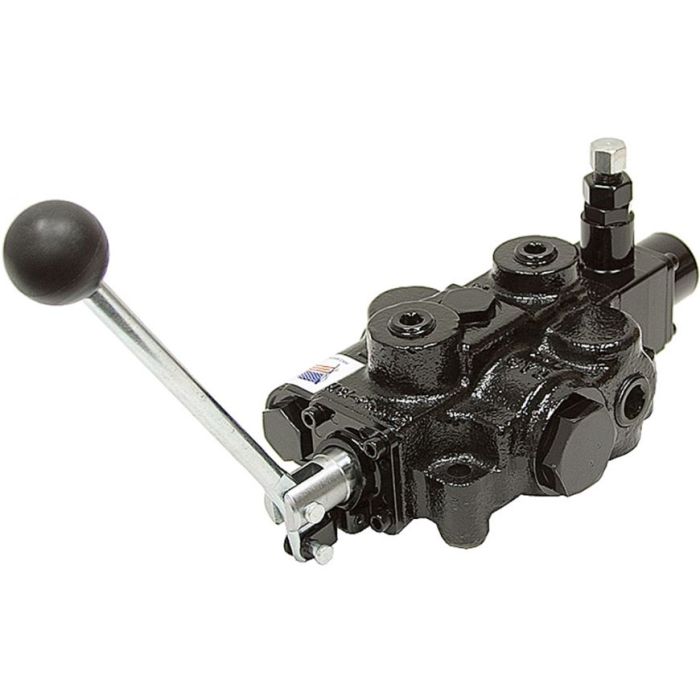

RD512CE5A4D1

Standard Features: Economical monoblock construction of high tensile strength gray cast iron. Load check on each spool Hard Chrome Plated Spools Optional 4 Position Float on 1st spool Differential poppet style relief, adjustable from 1500 to 3000 psi (also available in low pressure version adjustable from 500 to 1500 psi) Power beyond and closed center capability SPECIFICATIONS Pressure Rating Maximum Operating Pressure ........ 3000 psi Maximum Tank Pressure................... 500 psi Nominal Flow Rating ...........................30 GPM Refer to Pressure Drop Curves. Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level. For extended life or for pilot operated valves, the 18/16/13 fluid cleanliness level is recommended. Maximum Operating Temp...........................180°F Weight .................................... Approx 14 Ibs
