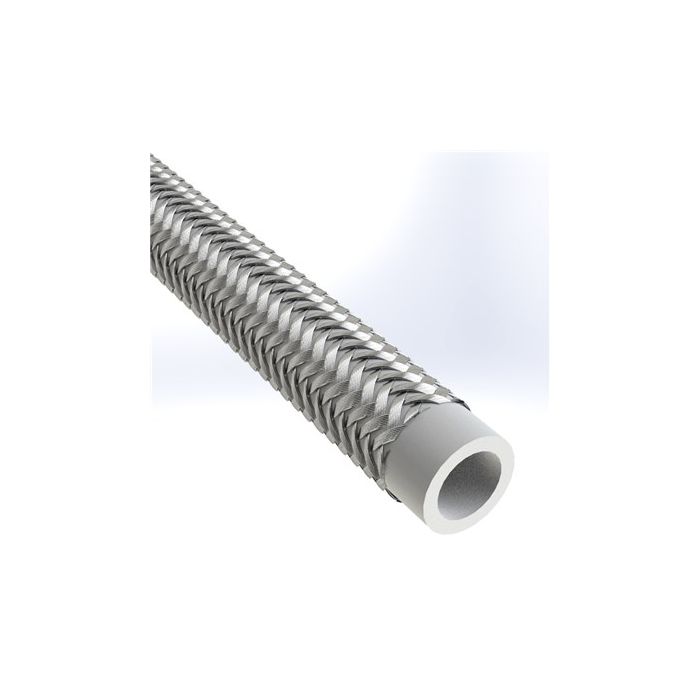

BR14-10 - 5/8" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
- SKU
- BR14-10-Texcel
$9.14
Description / BR14-10 - 5/8" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
More Information
| Product Name | BR14-10 - 5/8" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID |
|---|---|
| Brand | Texcel |
| Bend Radius (inch) | 5.11 |
| I.D. (inch) | 5/8" |
| O.D. (mm) | 19.1 |
| Working Pressure (bar) | 100 |
| Burst Pressure (psi) | 5800 |
| Working Pressure (psi) | 1450 |
| O.D. (inch) | 0.75 |
| Burst Pressure (bar) | 400 |
| Bend Radius (mm) | 130 |
| SKU | BR14-10-Texcel |
| Weight | 0.180000 |
