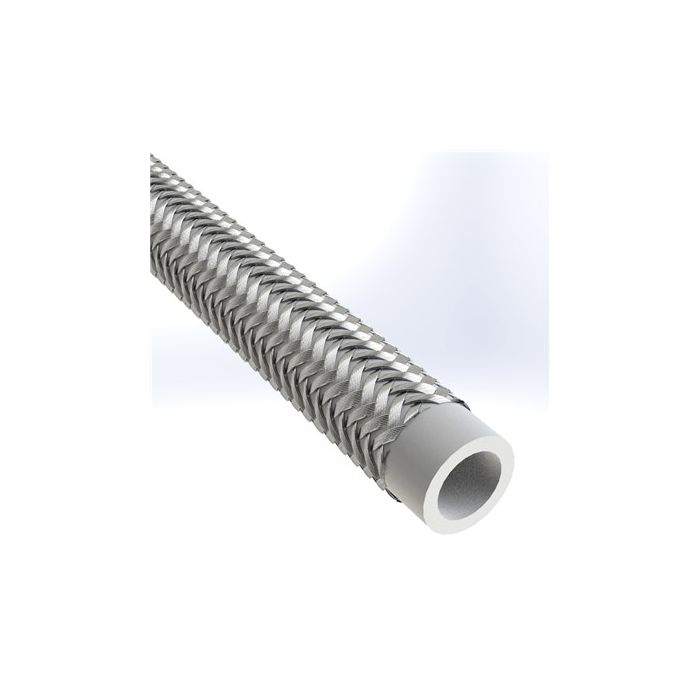

BR14-4 - 1/4" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
- SKU
- BR14-4-Texcel
$4.05
Description / BR14-4 - 1/4" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
More Information
| Product Name | BR14-4 - 1/4" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID |
|---|---|
| Brand | Texcel |
| Bend Radius (inch) | 1.77 |
| I.D. (inch) | 1/4" |
| O.D. (mm) | 8.9 |
| Working Pressure (bar) | 175 |
| Burst Pressure (psi) | 10160 |
| Working Pressure (psi) | 2540 |
| O.D. (inch) | 0.35 |
| Burst Pressure (bar) | 920 |
| Bend Radius (mm) | 45 |
| SKU | BR14-4-Texcel |
| Weight | 0.400000 |
