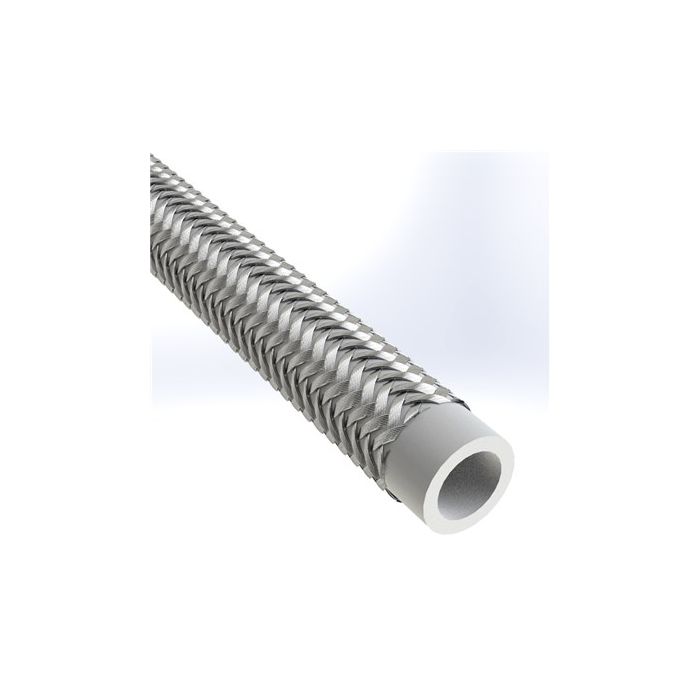

BR14-6 - 3/8" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
- SKU
- BR14-6-Texcel
$5.35
Description / BR14-6 - 3/8" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
More Information
| Product Name | BR14-6 - 3/8" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID |
|---|---|
| Brand | Texcel |
| Bend Radius (inch) | 2.16 |
| I.D. (inch) | 3/8" |
| O.D. (mm) | 12.4 |
| Working Pressure (bar) | 135 |
| Burst Pressure (psi) | 7840 |
| Working Pressure (psi) | 1960 |
| O.D. (inch) | 0.47 |
| Burst Pressure (bar) | 540 |
| Bend Radius (mm) | 55 |
| SKU | BR14-6-Texcel |
| Weight | 0.400000 |
