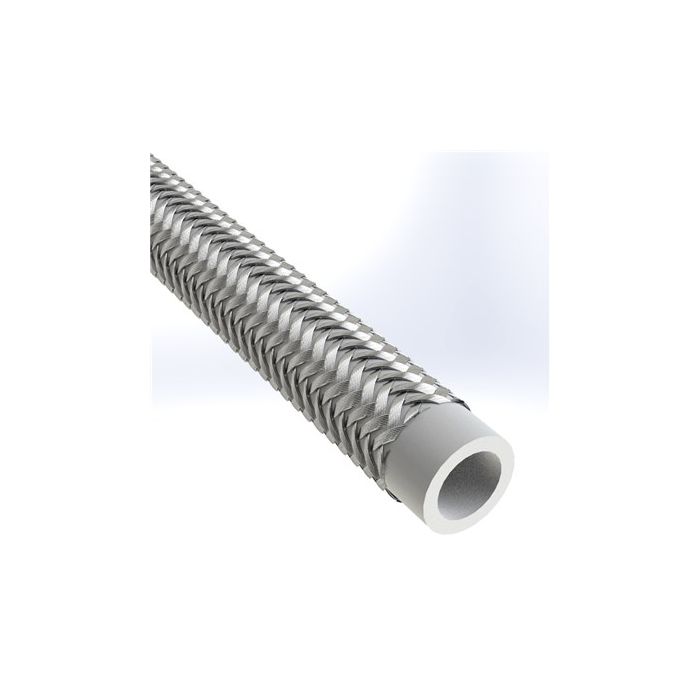

BR14-8 - 1/2" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
- SKU
- BR14-8-Texcel
$7.60
Description / BR14-8 - 1/2" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID
High pressure and non-conductive PTFE tubing with 100R14 stainless steel outer braid for paints, oil, air, and water based fluids.
More Information
| Product Name | BR14-8 - 1/2" SAE 100R14 PTFE TEFLON LINED STAINLESS STEEL BRAID |
|---|---|
| Brand | Texcel |
| Bend Radius (inch) | 2.75 |
| I.D. (inch) | 1/2" |
| O.D. (mm) | 15.7 |
| Working Pressure (bar) | 120 |
| Burst Pressure (psi) | 6960 |
| Working Pressure (psi) | 1740 |
| O.D. (inch) | 0.61 |
| Burst Pressure (bar) | 480 |
| Bend Radius (mm) | 70 |
| SKU | BR14-8-Texcel |
| Weight | 0.400000 |
