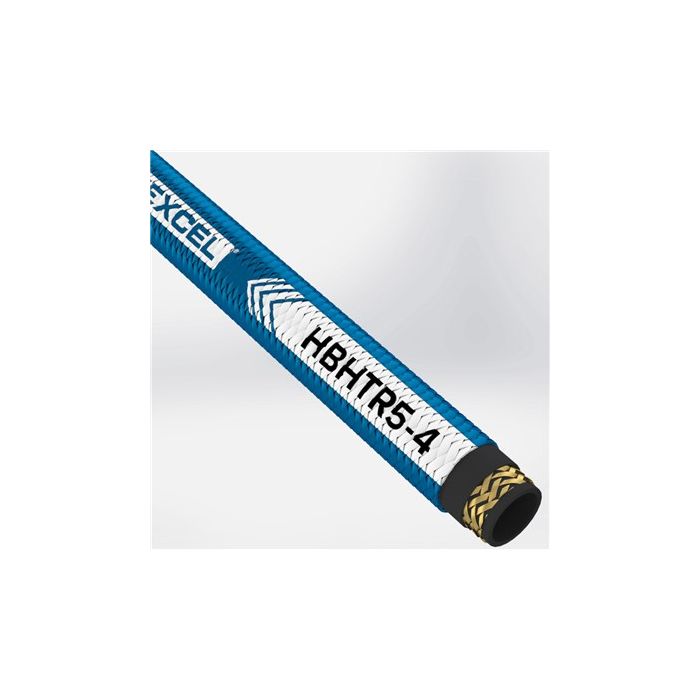

HBHTR5-4 - 3/16" SAE 100R5 HI TEMP
High temperature, medium pressure hydraulic hose use for petroleum-based oil lines.
- SKU
- HBHTR5-4-Texcel
$4.61
Description / HBHTR5-4 - 3/16" SAE 100R5 HI TEMP
High temperature, medium pressure hydraulic hose use for petroleum-based oil lines.
More Information
| Product Name | HBHTR5-4 - 3/16" SAE 100R5 HI TEMP |
|---|---|
| SKU | HBHTR5-4-Texcel |
| Weight | 0.400000 |
| Brand | Texcel |
| Bend Radius (mm) | 76 |
| I.D. (inch) | 3/16" |
| Bend Radius (inch) | 2.99 |
| O.D. (mm) | 13.2 |
| Working Pressure (bar) | 210 |
| Burst Pressure (psi) | 12000 |
| Working Pressure (psi) | 3000 |
| O.D. (inch) | 0.52 |
| Burst Pressure (bar) | 840 |
