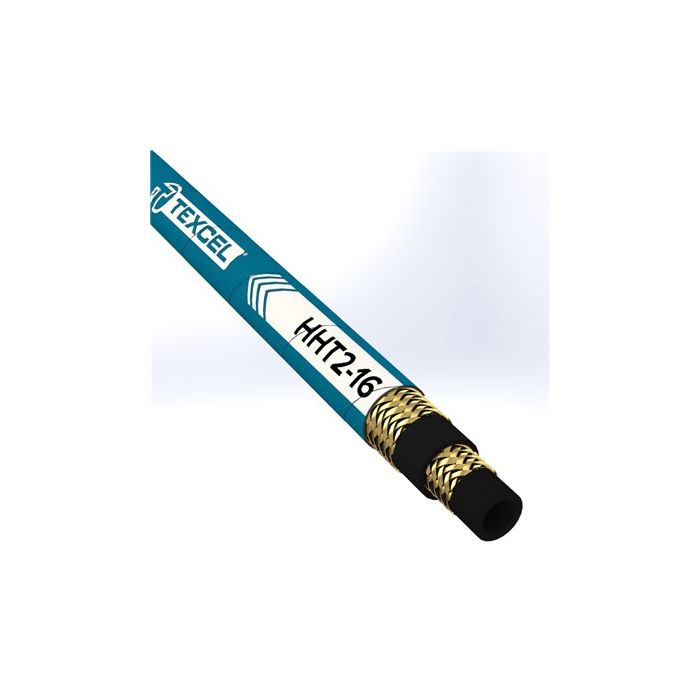

HHT2-16 - 1" SAE 100R2AT HI TEMP

Abrasion resistant hose for use in high temperature and high pressure hydraulic applications.
SKU
HHT2-16-Texcel
  $19.92
ask about our leads times? click here to chat.

Description / HHT2-16 - 1" SAE 100R2AT HI TEMP

Abrasion resistant hose for use in high temperature and high pressure hydraulic applications.

More Information

Product Name HHT2-16 - 1" SAE 100R2AT HI TEMP
SKU HHT2-16-Texcel
Weight 0.920000
Brand Texcel
Bend Radius (mm) 300
I.D. (inch) 1"
Bend Radius (inch) 12
O.D. (mm) 37.6
Working Pressure (bar) 165
Burst Pressure (psi) 9600
Working Pressure (psi) 2400
O.D. (inch) 1.48
Burst Pressure (bar) 660
