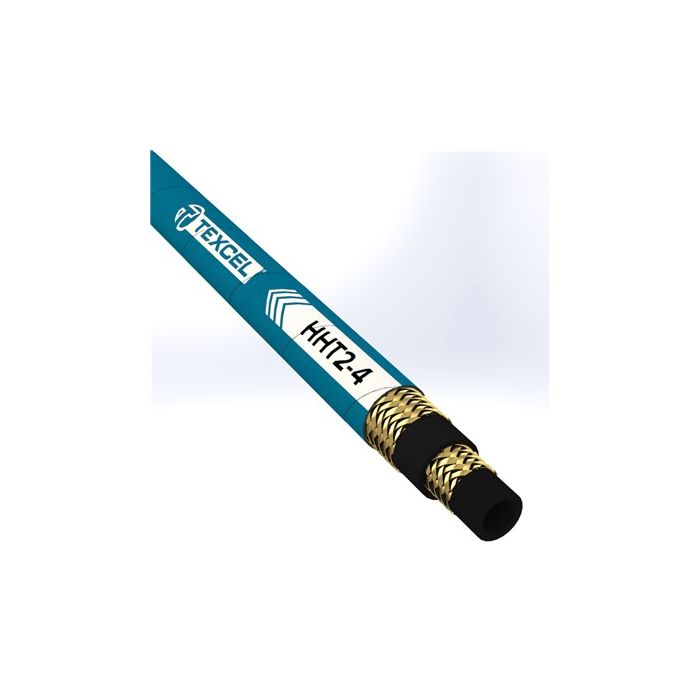

HHT2-4 - 1/4" SAE 100R2AT HI TEMP

Abrasion resistant hose for use in high temperature and high pressure hydraulic applications.
SKU
HHT2-4-Texcel
  $6.42
ask about our leads times? click here to chat.

Description / HHT2-4 - 1/4" SAE 100R2AT HI TEMP

Abrasion resistant hose for use in high temperature and high pressure hydraulic applications.

More Information

Product Name HHT2-4 - 1/4" SAE 100R2AT HI TEMP
SKU HHT2-4-Texcel
Weight 0.400000
Brand Texcel
Bend Radius (mm) 100
I.D. (inch) 1/4"
Bend Radius (inch) 4
O.D. (mm) 15
Working Pressure (bar) 400
Burst Pressure (psi) 23200
Working Pressure (psi) 5800
O.D. (inch) 0.59
Burst Pressure (bar) 1600
