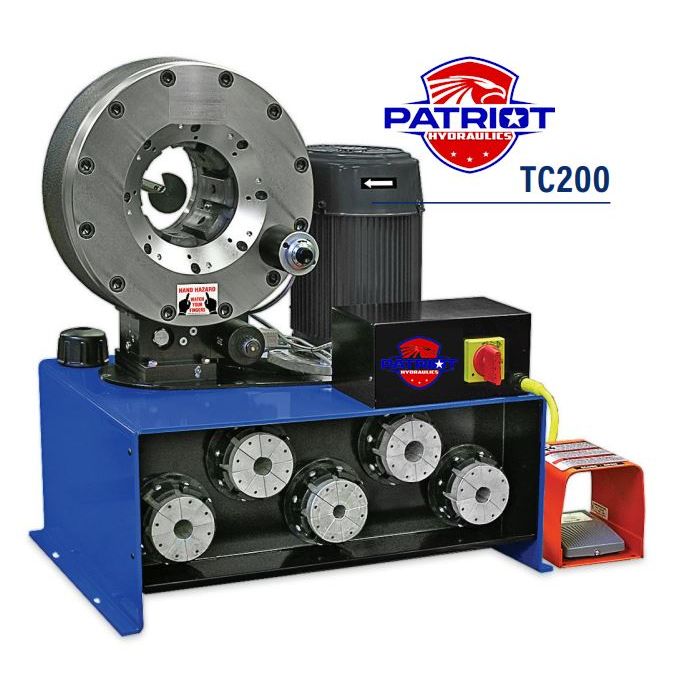

TC200-CDP (2IN 230V 3 PHASE CRIMPER + 13 DIE SETS)

TECHNICAL DATACrimping Force 340 Tons  Hose Capacity 2-½" 6 wire hydraulic and up to 3" industrial hose Dimension D: 20" x W: 29" x H: 32"  Weight 635 lbs  Power 7.5HP / 230V / 3Phase (Standard) 7.5HP / 440V / 3Phase (Optional) 5HP / 230 / 1Phase (Optional) 1HP / 12VDC (Optional) 1HP / 24VDC (Optional) Opening w/o Dies 160mm / 6.30" Master Die ID 130mm / 5.12" Master Die Travel 38mm / 1.5" loadScript('https://federalfp.com/static/frontend/FederalFP/default/en_US/Hyva_MagezonBuilder/js/jquery.min.js', 'jquery') .then(() => { return loadScript('https://federalfp.com/static/frontend/FederalFP/default/en_US/Hyva_MagezonBuilder/js/magezon-builder.js', 'mgzbuilder'); }) .then(() => { const elemId = $('.px8lhcl'); let mgzBuilder = new MagezonBuilder(elemId); }) TC200-CDPPart Number DescriptionTC200 2" CrimperTC200DR Die RackTC-QCT QC ToolTDS200-14 14mm DiesTDS200-16 16mm DiesTDS200-19 19mm DiesTDS200-23 23mm DiesTDS200-27 27mm DiesTDS200-31 31mm DiesTDS200-34 34mm DiesTDS200-38 38mm DiesTDS200-48 48mm DiesTDS200-57 57mm DiesTDS200-60 60mm DiesTDS200-70 70mm DiesTDS200-74 74mm Dies loadScript('https://federalfp.com/static/frontend/FederalFP/default/en_US/Hyva_MagezonBuilder/js/jquery.min.js', 'jquery') .then(() => { return loadScript('https://federalfp.com/static/frontend/FederalFP/default/en_US/Hyva_MagezonBuilder/js/magezon-builder.js', 'mgzbuilder'); }) .then(() => { const elemId = $('.p91528b'); let mgzBuilder = new MagezonBuilder(elemId); })
